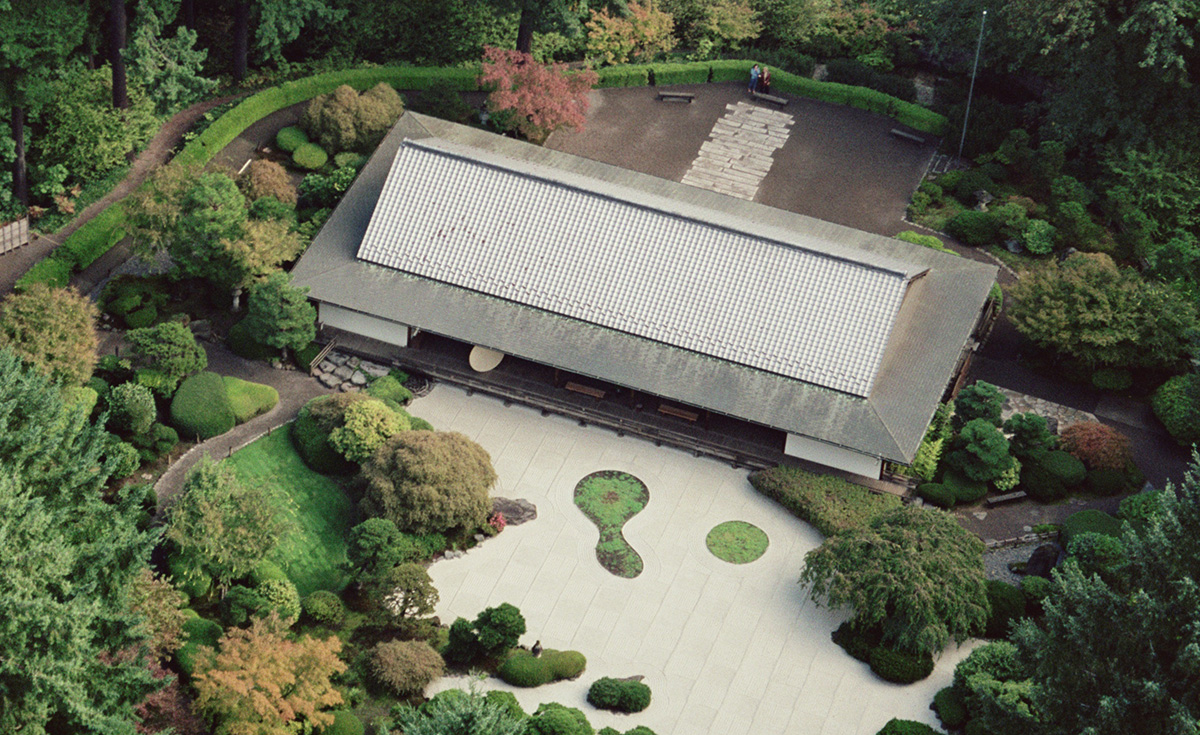

oriental Japanese clay roof tile in C21 royal blue on Japanese Garden, Portland, OR

detail of oriental Japanese clay roof tile in C09 Japanese black ibushi on restaurant in Long Beach california

Japanese Garden, Portland, OR

Roof Detail, Long Beach, CA

ORIENTAL-JAPANESE STYLE
Item Code: MO01

MCA’s Oriental-Japanese tile is a unique, interlocking, high quality tile made in the Japanese tradition. This beautiful clay tile is available in grayish smoked, and various glazed colors and will keep its distinctive appearance while withstanding constant exposure to any weather condition.
Traditional designs, as in a Japanese style temple or teahouse, will feature ornaments in various shapes and sizes. The most traditional color used for a Japanese style teahouse or temple is the C09 Japanese Black. This color originated in China and was brought to Japan over 1400 years ago. Japanese Black, called “Ibushi” in Japan, is smoked and is a through body color.
Without the use of decorative ornaments, Oriental-Japanese Style tile is also suitable for western, contemporary designs.
A 50-Year Limited Warranty is available on all MCA tiles.

Tile Specifications:
Actual Size:	12″ X 12”
Exposed Size:	9-1/2″ x 10-1/2″ O.C.
Weight per square:	864 lbs.
Weight per piece:	6 lbs.
No. of pieces per square:	144 pcs
Metric Tile Specifications:
Actual Size:	305mm x 305mm
Exposed Size:	241mm x 266mm
Weight per M2:	54 kg
Weight per piece:	2.72 kg
No. of pieces per M2:	15.5 pcs.
Metric conversion of lumber is actual dimensions of lumber; use lumber of the closest dimensions available. *Dimension of the head of the tile.

Oriental-Japanese Color Family

C01 Blue

C09 Japanese Black

C07 Maroon

C05 Dark Green

C10 Gray

C23 Metallic Silver

C12 Maple

C02 Chinese Gold

C03 Black

C14 Matte Brown

NOTE: Some tiles may have slight variations in color due to the inherent nature of clay tile and the limitations and/or variations of viewing photos on your individual monitor and its variable color and/or resolution scheme.

Oriental-Japanese Products

Field

Eave

*Embossed Eave

Right Gable

Left Gable

*Straight Eave

Right Gable Corner

Left Gable Corner

Ridge Field

Ridge End

Ridge Starter

Ridge Down End

Ridge Size 5

Standard Ridge Size 6

Sumaru Size 5

Two Forked Ridge

Three Forked Ridge

Three Forked Eave

Three Forked Eave Set

Kaezu Gable Ornament

Kaezu Hip Ornament

Snow Stopper

Cloud Hip Ornament

Cloud Gable Ornament

Oriental-Japanese Clay Roof Tile Specification

TRI Installation Manual

TRI Cold and Snow Installation Manual

Download Summary Drawing PDF
Download DWG (ZIP)

CC/Codes, Certifications

IAPMO Uniform Evaluation Report No. 0356 (covers City of Los Angeles and is in lieu of ICC-ES)
Class A, E108 (UL790)
ASTM C1167, Grade 1
TDI Approval RC-21
Miami-Dade County Approval 22-0929.02
Florida Building Code, FL22539.8
DSA IR 15-1 Attachment of Clay or Concrete “S” Roof Tile – 2019 CBC (California Building Code)
DSA IR 15-2 Clay and Concrete Roof Tile Materials & Application – 2019 CBC (California Building Code)
